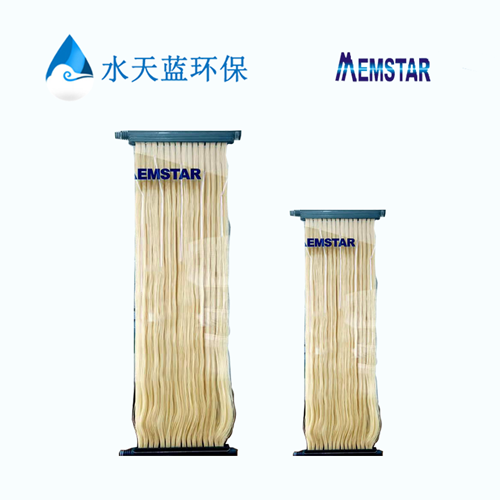

Memstar SMM-1015 PVDF Immersed Hollow Fiber MBR Membrane Cassette

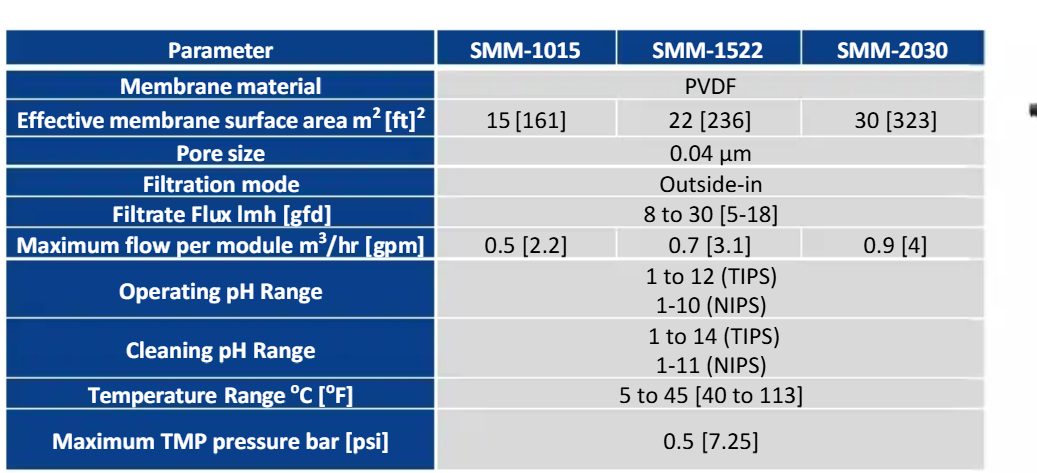

Module Specifications：
Membrane Material：PVDF
Nominal Pore Size：0.04 μm
Filtration Mode：Outside-in
Housing Material：ABS
Potting Material：Epoxy/Polyurethane
Filtration Surface Area：15 m² (161 ft²)
Wet Weight：9 kg (20 lbs)
Dimensions：571 mm (长) × 45 mm (宽) × 1040 mm (高)
Filtrate Pipe Port：OD32 UPVC (Single OD32 UPVC)
Operating & Cleaning Parameters：
Maximum TMP：40 kPa
Operating pH Range：2.0 – 11.0
Cleaning pH Range：1.0 – 12.0
Temperature Range：5°C – 40°C
Target MLSS：6,000 - 10,000 mg/L
To enquire about prices for authentic industrial water treatment consumables such as RO membranes, NF membranes, UF membranes, ion exchange resins and EDI modules, please use the contact details below.
