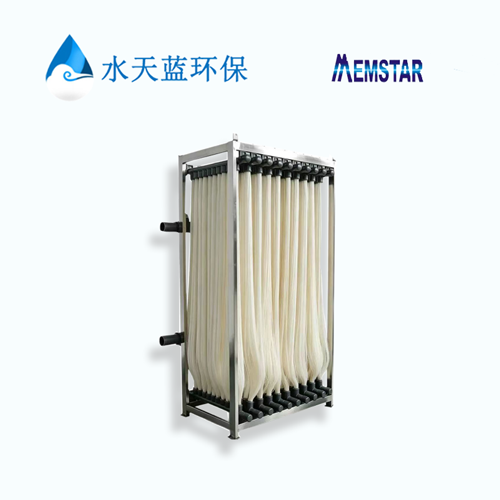

Memstar SMM-1013 MBR membrane cassette
Overview & Application：
Brand: Memstar (美能)
Model: SMM-1013
Type: Submerged Hollow Fiber Membrane Module.
Applications: Membrane Bio-Reactor (MBR) and Membrane Coagulation Reactor (MCR) for municipal and industrial wastewater treatment.
Technical Specifications：
Parameter：Specification
Membrane Material：PVDF (Polyvinylidene Fluoride) with Hydrophilic Modification
Nominal Pore Size:0.04 μm / 0.1 μm
Fiber Diameter (ID/OD):0.6 mm / 1.2 mm
Effective Membrane Area:25 m²
Module Dimensions (L × W × H):571 mm × 45 mm × 1535 mm
Design Flux:15 – 30 LMH (L/m²·h)
Flow Rate per Module：Approx. 375 L/h (at 15 LMH)
Operating Conditions & Limits：
Operating Temperature : 5°C – 45°C
Operating pH Range : 1.0 – 10.0
Max. Transmembrane Pressure (TMP) : Under suction: 40–50 kPa / Backwash: Max 50 kPa
Cleaning Chemical Tolerance :
NaOCl (Sodium Hypochlorite): Max 2,000 mg/L (Active Chlorine) for Maintenance Cleaning.
Citric Acid / Oxalic Acid: 0.5% – 1.0wt% for Inorganic Scaling.
Key Features in English Literature ：
High Mechanical Strength: Reinforced PVDF hollow fibers to prevent fiber breakage during intensive aeration.
Permanently Hydrophilic: Enhanced fouling resistance and stable permeate water quality (≤ 1 NTU).
Compact Design: Optimized for containerized MBR plants, shallow tanks, or high-density membrane cassettes.
