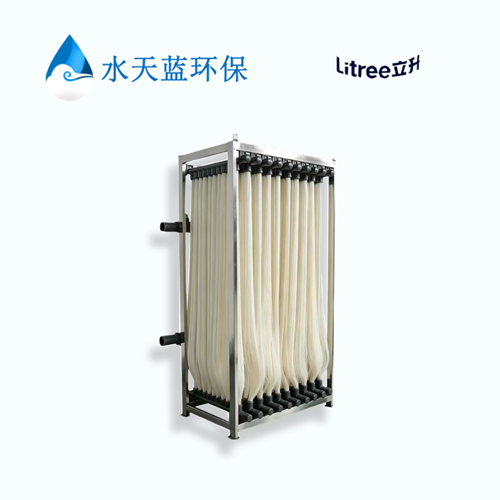

Litree GEMINI-S14 MBR membrane cassette
Core Specifications & Parameter Table:
Parameter:Technical Specification
Model No.:GEMINI-S14
Membrane Material：Reinforced Hollow Fiber (PVDF) / PET supporting layer
Pore Size：0.02 μm
Fiber ID / OD：1.0 mm / 2.0 mm
Active Membrane Area：322 m² (Per Cassette / Frame)
Single Module Area：23 m²
Single Module Weight：13 kg (Dry Weight)
Single Module Dimension：721 × 70 × 1622 mm (L × W × H)
Cassette/Frame Dimension：1210 × 805 × 2010 mm (L × W × H)
Filtration Model：Outside-in (Negative Suction Pressure)
Operating & Design Limits：
Max. Operation Pressure / TMP: -60 kPa (-0.06 Mpa / -8.7 psi)
Operating Temperature Range: 5°C – 40°C (Max. 45°C)
Recommended pH Range: 1 – 12 (Wide tolerance up to 13 during CIP)
Max. Active Chlorine Tolerance: 1,000 ppm
Design Flux Range: 10 – 30 LMH (L/m² ⋅ h)
Backwash Type: Air-Water Backwash
Technical Features & Advantages：
High Filtration Precision: The 0.02 micron pore size provides an excellent physical barrier that efficiently removes suspended solids (SS), bacteria, colloids, and pathogens, ensuring high-quality effluent.
Reinforced PVDF Material: Built with a PET supporting layer, the reinforced PVDF hollow fiber offers high mechanical strength, eliminating the risk of fiber breakage during long-term aeration and operation.
High Resistance to Fouling: Optimized aeration and header designs allow for stable permeability and highly sustainable cross-flow filtration performance.
Separation of HRT & SRT: MBR technology completely separates Hydraulic Retention Time (HRT) and Sludge Retention Time (SRT), simplifying the downstream system design and footprint.
Typical Applications：
Municipal Sewage Treatment & Wastewater Upgrades.
Industrial Wastewater Treatment (Textile, Chemical, Oil Refinery, etc.).
Pretreatment for Reverse Osmosis (RO) systems.
Reclaimed Water Reuse / Water Recycling Projects.
