General Information：

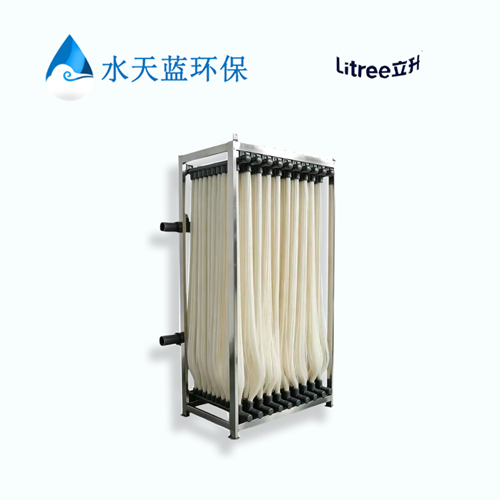

TFSH23Q is manufactured as an equivalent, direct replacement, alternative, analog, retrofit and analogue to replace Litree MBR Module LJ1E3-1500-PV2 (LJ1E31500PV2).
TFSH23Q hollow fiber MBR membrane have a great variety of potential combinations and are designed and manufactured for wastewater and sewage treatment plants. Consisting of a 0.02 micron PVDF Ultrafiltration membrane, provides excellent physical barrier to suspended solids, bacteria and other pathogens. The uniform pore size distribution ensures high permeability and sustainable operation.
The new generation of high flux TFSH23Q modules for MBR applications are upgrade-designed and improved, while continuing to leverage the aeration and header design.
TFSH23Q submerged hollow fiber membrane modules are providing economical, comprehensive wastewater and sewage solutions to industrial and municipal applications around the world.
Membrane Characteristics：
High quality raw material
Reinforced membrane
High resistance to fouling
Direct and economical module replacement

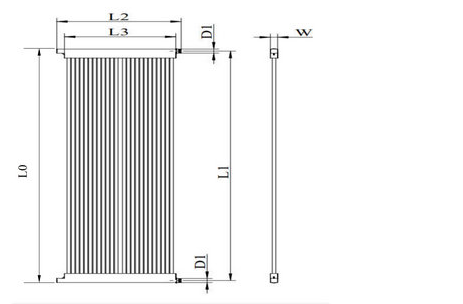

Module Specifications：
Membrane Surface Areas (m2/ft2)：23/247.57
Membrane Material：Reinforced PVDF (PET supporting layer)
Pore Size (μm)：0.02
ID/OD (mm/inch)：1.0/2.2 (0.039/0.087)
L0 (mm/inch)：1,622/63.86
L1 (mm/inch)：1,575/62.01
L2 (mm/inch)：721/28.39
L3 (mm/inch)：640/25.2
W (mm/inch)：70/2.75
Filtrate Connector/D1：DN32 Quick Connector*
Flow Direction：Outside-in
Flow Type：Negative Suction Pressure
Backwash Type：Air Water Backwash
Flux Design (LMH)：10-30
Module Weight (kg/lb)：13/28.66
Sealing Material：PU
Conduit Material：ABS
Operation Flux (L/H)：285-865
Max TMP (Mpa/psi)：-0.06/-8.7
Operating Temperature (℃/°F)：5-45/41-113
Max Temperature (℃/°F)：45/113
Recommended pH Range：1-12
Max Active Chlorine (ppm)：1,000
Applications ：
Industrial wastewater treatment and recycling.
Municipal and domestic sewage treatment.
Submerged filtration & industrial water pretreatment .
