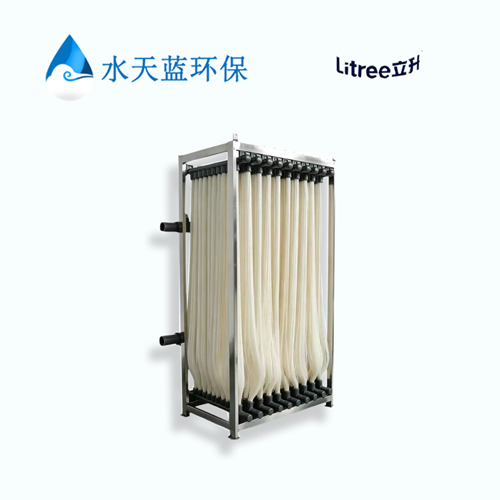

English technical data sheet for the LITREE LJ1E3-950-PF Submerged PVDF Hollow Fiber Membrane Module based on official Litree specifications。
Product Overview：
Brand: LITREE (立升).
Product Name: Submerged PVDF Hollow Fiber Membrane Module / Membrane Curtain (Standard Type).
Model: LJ1E3-950-PF
Application: Municipal sewage treatment, industrial wastewater treatment, domestic sewage, and MBR (Membrane Bioreactor) systems.
Technical Specifications:
Technical Parameter：Specification / Value
Membrane Material：Reinforced PVDF Composite
Effective Membrane Area：14 m² (approx. 150.7 ft²)
Nominal Pore Size：0.02 μm
Fiber ID / OD：1.0 mm / 2.0 mm (or up to 2.2 mm with supporting layers)
Filtration Flow Direction：Outside-in
System Structure：Immersed / Submerged
Backwash Type：Air-Water Backwash
Design Flux：10 – 30 LMH (L/m²·h)
Flow / Operation Type：Negative Suction Pressure
Operation Flux Rate：285 – 865 L/H
Dimensions (L × W × H)：721 mm × 70 mm × 1082 mm
Dry Weight：9.0 kg (Module weight varies up to 13 kg with housing connectors)
Operating Limits & Chemical Resistance：
Maximum Operating Temperature: 40°C – 45°C (104°F – 113°F)
pH Operating Range: 1 – 12 (Tolerance up to 13 during CIP/cleaning)
Maximum Transmembrane Pressure (Max TMP): -60 kPa (-0.06 MPa / -8.7 psi)
Maximum Active Chlorine Tolerance: 1,000 ppm
Key Features：
High-Quality Reinforced Structure: Prevents fiber breakage under negative pressure or intensive air scouring.
Excellent Anti-Fouling: Outside-in design offers higher tolerance to suspended solids and easier cleaning.
Reliable Pathogen Barrier: The 0.02 μm pore size provides absolute physical removal of bacteria, suspended solids, and colloids.
