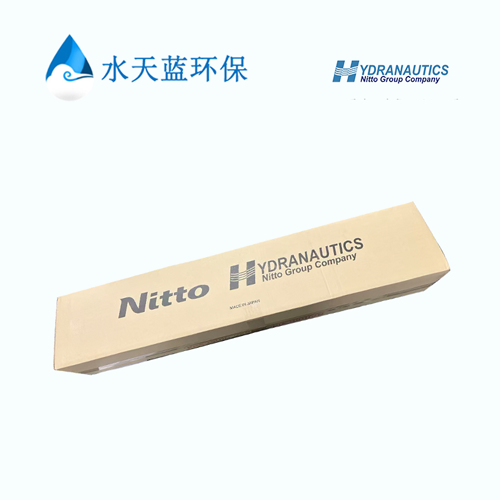

HYDRANAUTICS ESNA1-LF-LD Product Data Sheet.
Specified Performance：
Permeate Flow: 9,500 gpd (36 .0 m3/d)
CaCl2 Rejection: 93%
CaCl2 Rejection (Minimum/Maximum): 88%/97%
Expected calcium rejection for a typical 500 ppm well water is 96% at 13 gfd operating flux and 25ºC.
Test Conditions: 500 ppm CaCl2 solution
75 psig (0 .52 MPa) Applied Pressure
77 ℉ (25℃) Operating Temperature15% Permeate Recovery
6.5 - 7.0 pH Range
The Specified Performance is based on data taken after a minimum of 10 minutes of operation. Actual testing of elements may be done at conditions which vary from these exact values; in which case, the performance is normalized back to these standard conditions. Permeate flow for individual elements may vary -20 / +25 percent from the value specified.

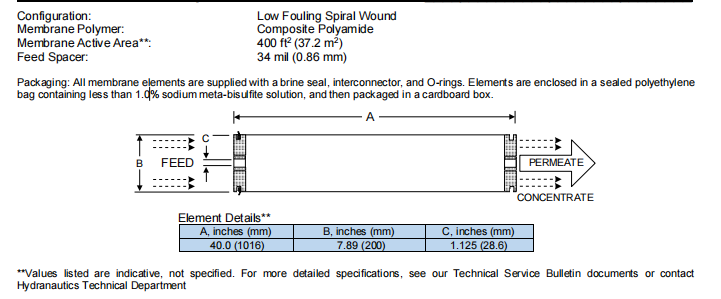

General Product Description：
Product Use and Restrictions：
Maximum Applied Pressure: 600 psig (4 .14 MPa)
Maximum Chlorine Concentration: < 0.1 ppm
Maximum Operating Temperature: 113℉ (45℃)
pH Range, Continuous (Cleaning): 2-10 (1-12 at 25 ℃ for 30 minutes)
Maximum Feedwater Turbidity: 1.0 NTU
Maximum Feedwater SDI (15 mins): 5.0
Maximum Feed Flow: 85 gpm (19 .3 m3/h)
Minimum Brine Flow: 12 gpm (2 .7 m3/h)
Maximum Pressure Drop for Each Element: 15 psi (0 .10 MPa)
The limitations shown here are for general use. For specified projects, operation at more conservative values may ensure the best performance and longest life of the membrane. See Hydranautics Technical Bulletins for more details.
