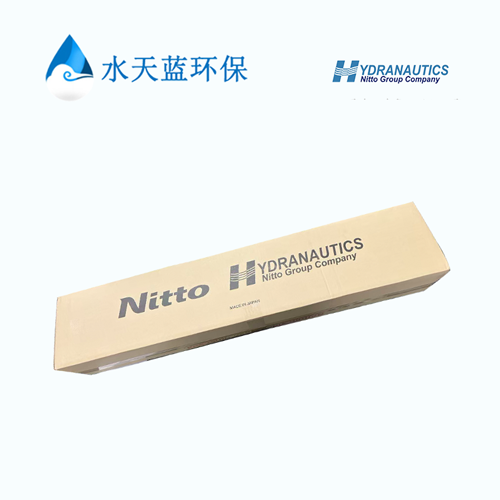

HYDRANAUTICS ESNA1-LF2-LD Product Data Sheet.

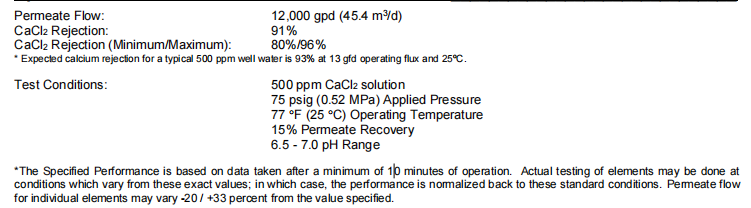

Specified Performance:

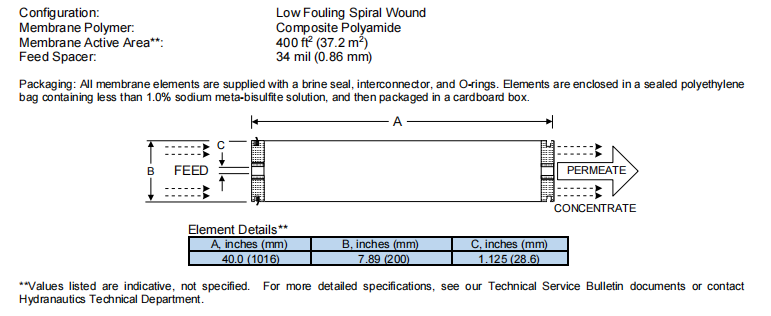

General Product Description:
Product Use and Restrictions:
Maximum Applied Pressure: 600 psig (4 .14 MPa)
Maximum Chlorine Concentration:< 0.1 ppm
Maximum Operating Temperature: 113 F (45 C)
pH Range, Continuous (Cleaning): 2-10 (1-12 at 25C for 30 minutes)
Maximum Feedwater Turbidity: 1.0 NTU
Maximum Feedwater SDI (15 mins): 5.0
Maximum Feed Flow: 85 gpm (19 .3 m3/h)
Minimum Brine Flow: 12 gpm (2 .7 m3/h)
Maximum Pressure Drop for Each Element: 15 psi (0 .10 MPa)
The limitations shown here are for general use. For specified projects, operation at more conservative values may ensure the best performance and longest life of the membrane. See Hydranautics Technical Bulletins for more details.
