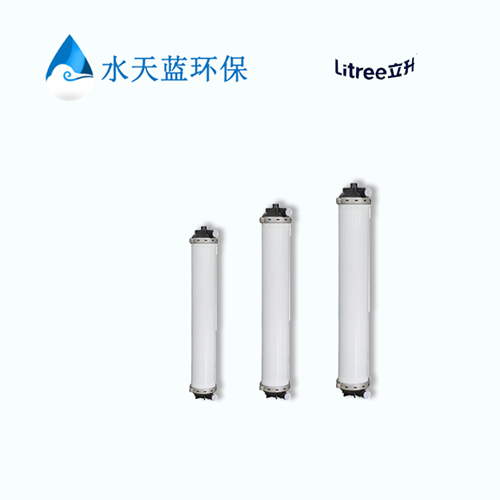

Litree LW2-0980-F
Technical Specifications:
Model:LW2-0980-F
Membrane Material:PVDF
Operation Mode:Outside-in / Outside-in Hollow Fiber
Membrane Area:77 m²
Nominal Pore Size:0.02 μm
Molecular Weight Cut-Off (MWCO):100,000 Daltons
Flow Rate Range:3.0 - 10.8 m³/h
Design Flux:60 - 160 L/m²/h
Fiber ID / OD:1.0 mm / 1.66 mm
Operating & Cleaning Conditions:
Maximum Inlet Pressure:0.3 MPa (3.0 bar)
Maximum Operating Temperature:40 °C (104 °F)
pH Range for Continuous Operation:2 - 13
Chemical Tolerance:Short-term tolerance to 200 ppm residual chlorine
Product Water Quality:
Turbidity : ≤ 0.1 NTU
SDI : ≤ 3 (Meets RO pretreatment standards
Key Technical Features:
High Chemical & Oxidation Resistance: The premium PVDF material provides excellent resistance to acids, alkalis, and strong oxidants, ensuring a longer lifespan during harsh chemical CIP (Clean-in-Place) cycles.
Anti-Fouling & High Flux: Litree's proprietary hydrophilic modification technology enhances the membrane's fouling resistance, maintaining stable and high water flux over extended operations.
High Filtration Accuracy: With a 0.02 μm precision pore size, it effectively removes bacteria, viruses, colloids, and suspended solids while keeping original minerals.
Outside-in Structure: Large dirt-holding capacity, easy to backwash and air-scour, leading to higher water recovery rates.
To enquire about prices for authentic industrial water treatment consumables such as RO membranes, NF membranes, UF membranes, ion exchange resins and EDI modules, please use the contact details below.
