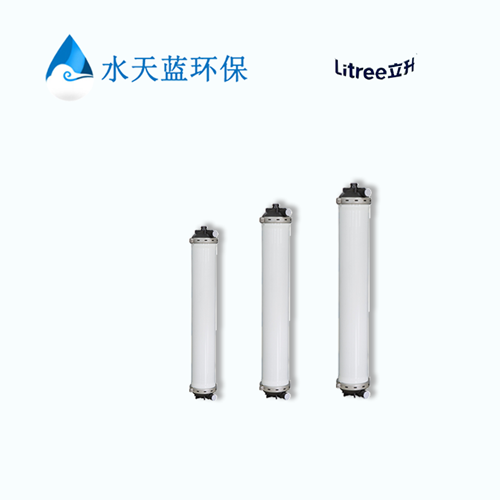

Litree LH4-1080-V UF Membrane Module
Technical Specifications：
Model :LH4-1080-V
Membrane Material:PVC alloy (Polyvinyl Chloride Alloy)
Pore Size:0.01 μm
Molecular Weight Cut-Off (MWCO):50,000 Dalton
Design Volume / Flux:3.7 ~ 14.8 m³/h
Filtration Mode:Inside-out (Dead-end filtration or cross-flow filtration)
Effective Membrane Area:74 m²
Dimensions:φ305 × 2315 mm
Shell Material:PVC / Epoxy resin bonded
Fiber ID / OD:1.0 / 1.6 mm
Product Features:
Self-developed Hollow Fiber Membrane: Utilizes Litree's proprietary PVC alloy formulation, ensuring excellent performance.
High Hydrophilicity: Provides stable water flux and reduces fouling organic adsorption.
Uniform Pore Size: Small, highly distributed 0.01 μm pores reliably intercept suspended solids, bacteria, and viruses.
Chemical Resistance: High acid and alkali resistance, allowing for robust chemical cleaning and extended lifespan.
Operations & Installation:
Operating Process: Standard cycles include Filtration / Production, Backwashing (using filtered water only), and Maintenance Cleaning (CIP).
Secure the module to the UF system frame using the provided fixed steel belt and card holder. A 3mm rubber gasket is highly recommended for standard sealing.
Typical Applications: Municipal water supply and wastewater treatment, industrial wastewater reuse, and pre-treatment for Nanofiltration (NF) or Reverse Osmosis (RO) systems.
To enquire about prices for authentic industrial water treatment consumables such as RO membranes, NF membranes, UF membranes, ion exchange resins and EDI modules, please use the contact details below.
