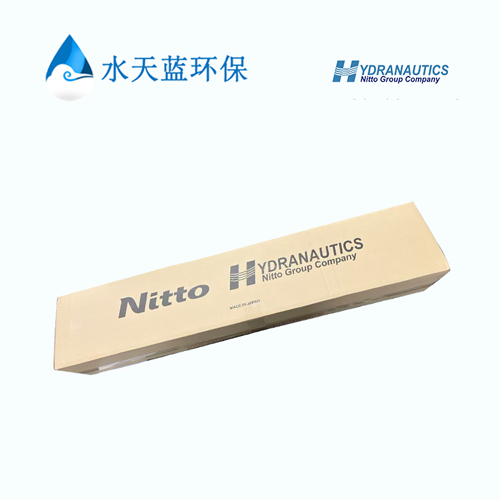

HYDRANAUTICS SWC5-LD.

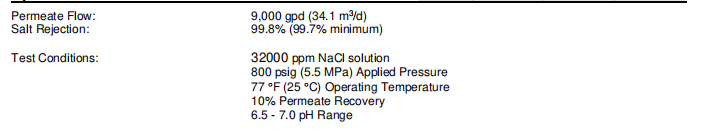

Specified Performance:
The Specified Performance is based on data taken after a minimum of 10 minutes of operation . Actual testing of elements may be done atconditions which vary from these exact values; in which case, the performance is normalized back to these standard conditions . Permeate flowfor individual elements may vary ±15 percent from the value specified.

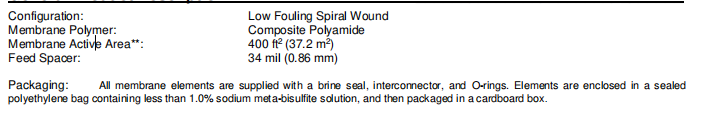

General Product Description:
Values listed are indicative, not specified . For more detailed specifications, see our Technical Service Bulletin documents or contactHydranautics Technical Department .
Product Use and Restrictions:
Maximum Applied Pressure: --------- 1200 psig (8.27 MPa)
Maximum Chlorine Concentration: -------- < 0.1 ppm
Maximum Operating Temperature: ----------113 ℉ (45 ℃)
pH Range, Continuous (Cleaning): --------- 2-11 (1-13)
Maximum Feedwater Turbidity: --------- 1.0 NTU
Maximum Feedwater SDI (15 mins): -------- 5.0
Maximum Feed Flow: - ------85 gpm (19 .3 m3/h)
Minimum Brine Flow: ---------- 12 gpm (2 .7 m3/h)
Maximum Pressure Drop for Each Element: ---------15 psi (0.10 MPa)
The limitations shown here are for general use . For specified projects, operation at more conservative values may ensure the bestperformance and longest life of the membrane . See Hydranautics Technical Bulletins for more details。
