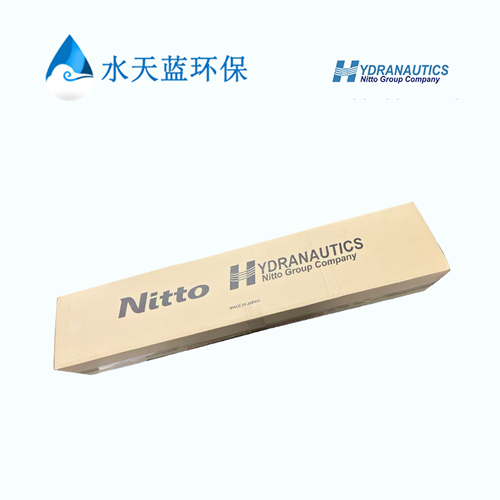

Hydranautics SWC5 MAX

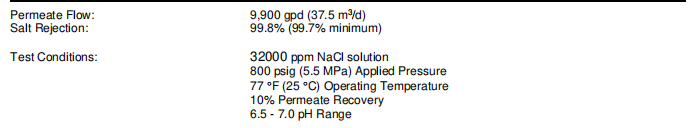

Specified Performance:
The Specified Performance is based on data taken after a minimum of 10 minutes of operation . Actual testing of elements may be done atconditions which vary from these exact values; in which case, the performance is normalized back to these standard conditions . Permeate flowfor individual elements may vary ±15 percent from the value specified.

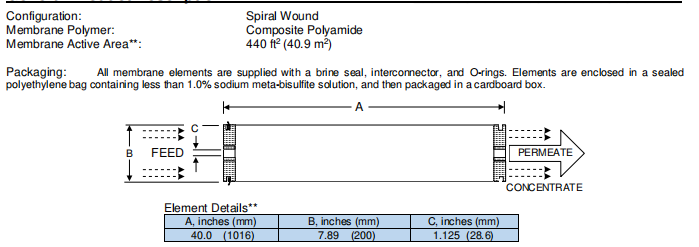

General Product Description:
Product Use and Restrictions:
Maximum Applied Pressure: ------- 1200 psig (8.27 MPa)
Maximum Chlorine Concentration:---------- < 0.1 ppm
Maximum Operating Temperature: -------- 113 ℉(45 ℃）
pH Range, Continuous (Cleaning): -------- 2-11 (1-13)
Maximum Feedwater Turbidity: ------- 1.0 NTU
Maximum Feedwater SDI (15 mins): --------- 5.0
Maximum Feed Flow: ---------75 gpm (17 .0 m3/h)
Minimum Brine Flow: - -------- 12 gpm (2 .7.0 m3/h)
Maximum Pressure Drop for Each Element: --------15 psi (0.10 MPa)
The limitations shown here are for general use . For specified projects, operation at more conservative values may ensure the bestperformance and longest life of the membrane . See Hydranautics Technical Bulletins for more details.
