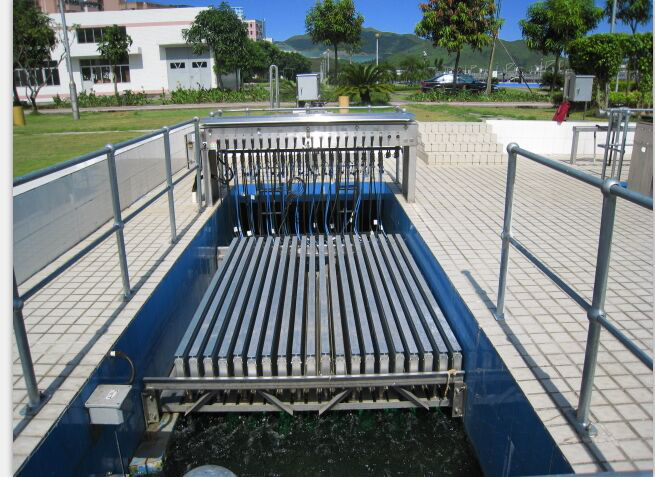

The open‑channel UV wastewater disinfection system is mainly applied to disinfection in municipal sewage treatment plants, residential wastewater treatment, water reuse for reclaimed water, industrial wastewater disinfection and other scenarios. Based on operating conditions and structural features, it falls into horizontal‑flow open‑channel type and vertical‑flow open‑channel type. Three water‑level control modes are available: overflow weir outlet, unpowered flap gate water‑level control and electric weir gate control.
The complete UV disinfection system consists of UV disinfection modules, automatic control center, power distribution center, automatic cleaning system, water‑level control system and auxiliary equipment.、
Low‑resistance module structure creates less hydraulic resistance than conventional modules, resulting in minimal water‑level fluctuation before and after disinfection.
IP68 ingress protection rating for rigorous application scenarios.
Multi‑seal waterproof design ensures tight mounting of quartz sleeves to prevent sleeves from dislodging under friction during automatic cleaning.
Additional sealing rings for cables to avoid short‑circuit damage to UV lamps caused by cable water ingress.
Fabricated from high‑grade corrosion‑resistant stainless steel. Lamps and signal cables are sealed inside disinfection modules and isolated from sewage and ultraviolet radiation.
Multiple configurations with 3‑20 lamps per module are offered according to treatment capacity, water quality and disinfection requirements of clients.
The human‑machine interface enables full‑parameter monitoring and control: device on/off, fault diagnosis, cumulative lamp runtime, lamp operating status and parameter setting. Operators can supervise system performance to achieve targeted germicidal UV dosage for disinfection processes.
Data communication with the central control room supports remote operation via:
Active / passive signal contacts
Industrial Ethernet
Module‑level communication interfaces
Users may select preferred PLC brands and interfaces; Siemens components are the standard configuration.
Upon fault occurrence, audible and visual alarms indicate fault type and location. Historical fault records can be retrieved.
Each module bank is equipped with a UV intensity monitoring set including submersible UV probes and UV intensity meters. Submerged probes monitor quartz‑sleeve fouling and real‑time UV lamp output variation.
