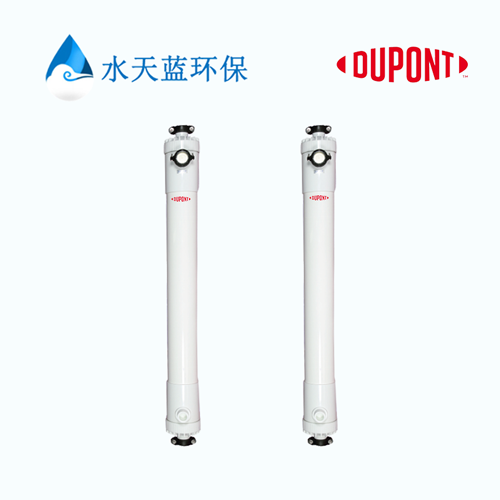

DuPont IntegraTec MB 60 (previously dizzer XL 0.9 MB 60 W).
DuPont IntegraTec MB 60 is a pressurized PES UF module, which offers exceptional physical strength and chemical resistance with excellent filtration permeability.
Key Features
Proven Multibore™ PES Fibers:
Exceptional physical strength and chemical resistance.
High colloidal particulate, bacteria and virus log removal rate.
Excellent filtration permeability.
Optional coagulation can enhance the removal of algae and organics.
Optimized Module Design:
Open platform design to fit customer built skids.
Robust materials for long lifetime.
Easy installation and low maintenance.
All wetted parts corrosion free.
Key Applications ：
Municipal drinking water.
Desalination RO pretreatment.
Industrial water.
Industrial wastewater reuse.
Ideal for height restricted or containerized filtration solution.

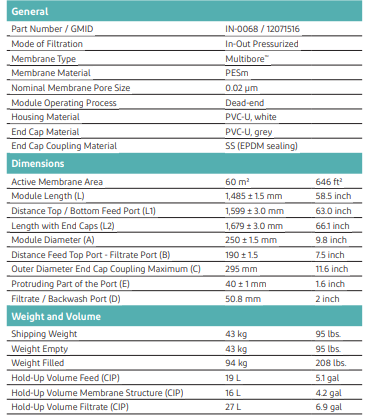

Module Specification：
Suggested Operating Conditions：
General | Details | |
Operating Temperature Range | 1 - 40 °C | 34 - 104 °F |
Operating pH | 3 - 11 | |
Cleaning pH | 1 - 13 | |
Typical Filtration TMP | 0.1 - 0.6 bar | 1.5 - 8.7 psi |
Typical Backwash TMP | 0.3 - 2.0 bar | 4.4 - 29.0 psi |
Backwash Flux | 230 L/(m²h) | 135 gfd |
Backwash Flow | 13.8 m3h | 60.8 gpm |
Operating Limits (Maximum)
Rate of Temperature Change | 5 °C/min | 9 °F/min |
Inlet Pressure (20 - 40 °C) | 5 bar | 73 psi |
Rate of Pressure Change | 0.5 bar/sec | 7.3 psi/sec |
Filtration TMP | 1.5 bar | 22 psi |
Backwash TMP | 3.0 bar | 44 psi |
Filtration Flux | 180 L/(m2h) | 106 gfd |
Filtration Flow | 10.8 m3h | 47.6 gpm |
Backwash Flux | 300 L/(m²h) | 176 gfd |
Particle Size | 300 µm | |
Exposure NaOCl | ≤ 250,000 ppm x h (at pH ≥ 9.5) | |
Concentration NaOCl | 500 ppm | |
