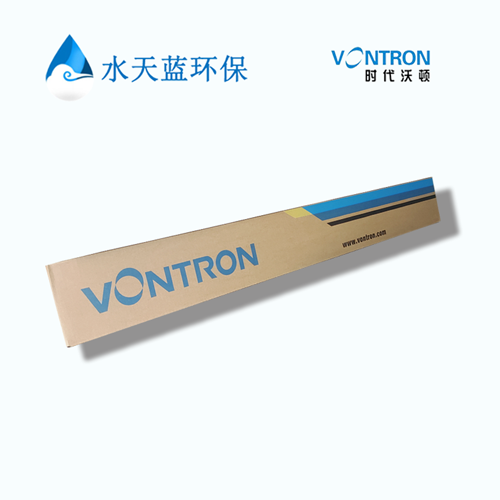

VONTRON ULP32-8040 Membrane Element.

Brief Introduction:

ULP series of ultra-low pressure aromatic polyamide compound membrane element newlydeveloped by Vontron Membrane Technology Co., Ltd. can work under ultra lowpressure toreach as high permeate flow and rejection same as regular low-pressure membrane element, andis applicable to desalination of surface water and underground water. It operates under approximately two thirds of the operating pressure of regular low-pressure composite membranes, which can decrease the investment costs for such relevant facilities as pumps, pipelines, andcontainers, etc. and the operating cost for the RO system, thus increasing the economic efficiency.

Applicable to desalination treatment of those water sources with NaCl lower than 2000 ppm, suchas surface water, underground water, tap water and municipal water, ULP series membrane elements are mainly applicable to such as pure water, boiler water replenishment, foodstuff processing, and pharmaceutical production.

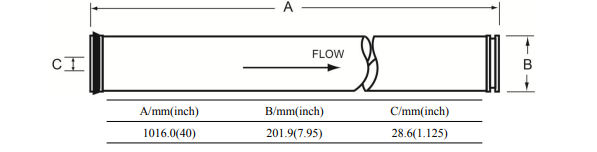

Size of Membrane Element：1.0 inch = 25.4 mm

Notice:

1. All data and information provided in this manual have been obtained fromlong-termexperiment by Vontron. We confirm the effective and accuracy of the data. Vontron assumes noliability for any aftermath caused by user’s failure in abiding by the conditions specified in this manual in use or maintenance of membrane products. It is strongly recommended that the user shall strictly abide the designed use and maintenance requirements and keep relevant records.

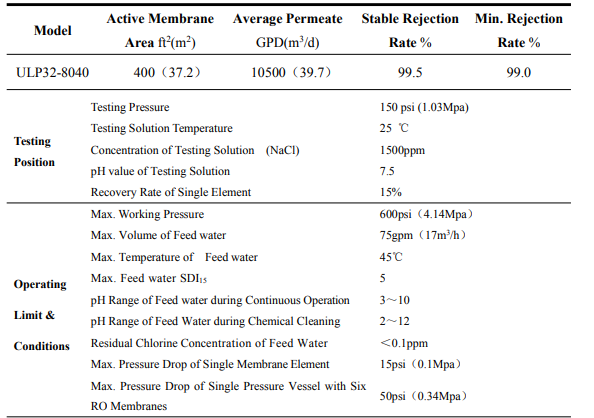

2. The permeate value listed in the table is the average value. The permeate flowof single membrane element is tolerance not exceeding ±15% of the nominal value.

3. All wet-type membrane elements have been strictly tested before leaving the factory, andhave been treated with 1.0% sodium hydrogen sulfite (10% glycerin antifreeze required in winter) for storage purpose, then sealed with plastic bag in vacuum, and further packed in carton boxes.

4. The membrane used should remain wet after being used; In long term suspension, to prevent the breeding of microbes, soak the membrane elements with protective solution is highlyrecommended, the solution (prepared with RO filtered water) containing 1.0% sodiumhydrogensulfite (foodstuff-purpose).

5. Operate low pressure flushing for 15-25 minutes of first use, high pressure flushing for 60-90minutes when first use (Permeate volume no less than 50% of designed volume). Discard all the permeate and condensed water produced during the first one hour after system start-up.

6. During storage time and operation period, it is strictly prohibited to added any chemical medicament that may be harmful to membrane elements. In case of any violation in addingchemical medicament, Vontron assumes no liability for any damages incurred.

7. Along with technical development and product renovation, all information will be subject tomodification without prior notification. Please keep notice the website of Vontron for any updates of the product.
