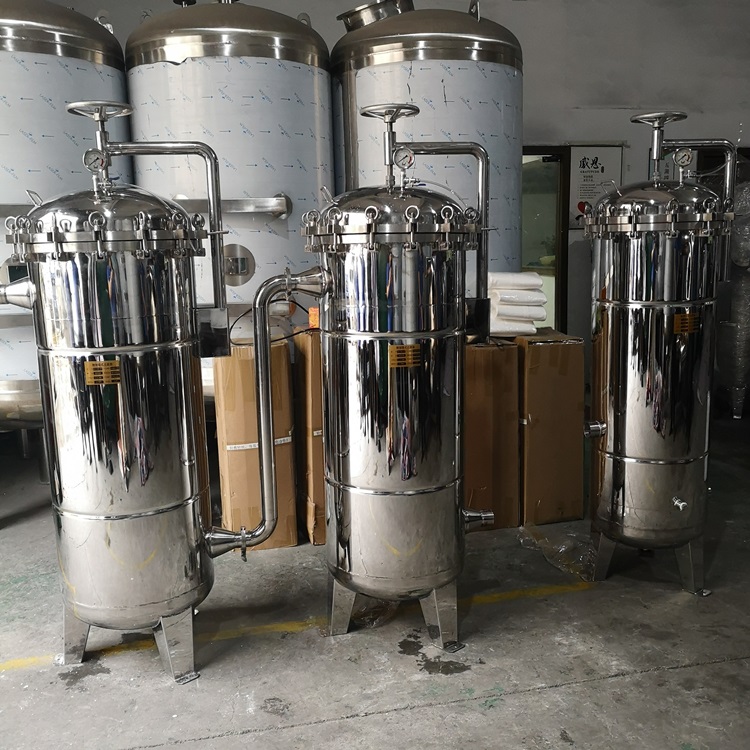

The bag‑type filter is a new‑style filtering device with higher precision than other solid filters. Featuring high flow capacity, simple assembly and low cost, it can handle most solid impurities. Filter bags with filtration precision ranging from 1‑100 μm are available, and its maximum throughput can reach 1 000 tons per hour.

The filter bags for our bag‑type filters meet national standards. Filter bags of different materials including polyester, polypropylene, nylon and wool can be selected according to working conditions, which are further divided into needled felt filter bags, monofilament/multifilament filter bags and melt‑blown non‑woven filter bags. High‑temperature treatment ensures filter pores will not expand under high water pressure to avoid filtration failure.

Thanks to low cost and reliable performance, bag‑type filters are widely used in beverage, textile, pharmaceutical, coating, chemical, metallurgical, electronic and many other industries.

Performance Features of Bag‑type Filters

• Simple and convenient operation, small footprint and easy installation.

• High filtration precision, suitable for fine particles and suspended solids; the filtration range covers 1‑800 μm.

• Large effective filtration area. One filter bag delivers the filtration capacity equivalent to 5‑10 filter cartridges of the same type, greatly cutting costs.

• Designed flow rate: 1‑1 000 m³/h with low construction cost.

• Versatile for both coarse and fine filtration.

• Large treatment flow per unit filtration area, low filtration resistance and high filtration efficiency.

• For equal filtration performance, it features lower investment cost, longer service life and lower operating cost compared with plate‑and‑frame fine filters, cartridge filters, raw water pre‑filters and fine filters.

• Reusable filter bags.

Internal Structure of Bag‑type Filters

Each filter bag is equipped with an independent locking device to eliminate bypass leakage.

• Integral precision boring design free of deformation

• Integral precision boring and rocker‑arm lifting device

• O‑ring sealing and high‑strength quick‑opening bolts

• Independent locking for each filter bag prevents bypass leakage

It is applied to precision filtration for industrial water, coatings, paints, sugar water, syrup, resin, printing ink, industrial wastewater, fruit juice, edible oil, wax and other media.

Liquid Filter Bags for Bag‑type Filters

Manufactured with imported high‑purity long‑filament fiber raw materials by needling, the surface is specially singed to prevent fiber shedding from contaminating filtrate. The fluffy and uniform three‑dimensional filter layer offers high capacity to trap solid and colloidal particles. High‑strength long fibers ensure stable filtration efficiency and extended service life of filter bags.

Manufactured in compliance with international European and American standards, the filter bags satisfy GMP requirements for domestic pharmaceutical industry and FDA standards. They serve as key filter elements in bag‑type filtration systems, and filter‑bag quality determines overall filtration efficiency.

Filter bag materials: high‑temperature‑resistant and acid‑alkali‑resistant PTFE, polyester (PE), polypropylene (PP), nylon monofilament/multifilament (NMO), stainless steel (SUS304), supporting filtration precision from 0.5‑1 000 μm.

Filter bag collars: stainless‑steel rings, galvanized‑steel rings, PP / PE plastic rings and polyester ropes.

Joining techniques: Imported equipment is adopted for hot‑melt welding including plastic‑ring welding and bottom‑seam welding, as well as sewing processes such as lock‑stitch, over‑edge stitch and reverse stitch. Apart from standard‑size filter bags (Size 01#, 02#, 04#), custom‑made special filter bags can be produced for customers’ specific processes. Non‑standard bag dimensions are to be provided by customers.

Besides standard products, we can also supply polyester woven filter bags, filter bags for plate‑and‑frame filter presses, stainless‑steel mesh filter bags, activated‑carbon fiber filter bags and anti‑fiber‑shedding filter bags.

Filter Basket for Bag‑type Filters

The support filter basket for filter bags is integrally stamped and formed. Annular reinforcing grooves are arranged on the cylinder for high overall strength with exquisite and elegant appearance. The surface can be mirror‑electropolished or matte‑finished.

Application

Widely used for paints, beer, vegetable oil, pharmaceuticals, cosmetics, chemicals, petroleum products, chemical agents, electroplating solutions, milk, mineral water and hot solvents.

Our company specializes in designing and selling filter‑press products and delivers comprehensive engineering solutions for plate‑and‑frame filter presses. Covering an area of 15 000 m², we are equipped with advanced production lines for plate‑and‑frame filter presses, precise testing equipment, professional R&D engineers, skilled production workers and high‑quality sales & service teams.

Our main products include plate‑and‑frame filter presses, chamber filter presses, membrane filter presses, stainless‑steel filter presses, belt filter presses, bag‑type filters, cartridge filters, precision filters and diatomaceous‑earth filters.
