‑ Realignment of pump set alignment is mandatory if the pump casing, motor or complete pump unit has been relocated. ‑ Extended‑type couplings are available as an option. They allow pump maintenance without moving the motor or removing the pump casing from the pipeline for easier servicing.
‑ Standard‑equipped bearings are maintenance‑free, grease‑sealed deep‑groove ball bearings manufactured by globally renowned brand SKF.
‑ Either mechanical seals or packing seals are optional for shaft sealing applications. ‑ Mechanical shaft seal is supplied as standard, complying with DIN 24960, with silicon‑carbide‑versus‑graphite material combination. ‑ Alternative mechanical seal types or packing seals are available to match different pumped fluids and operating conditions.
‑ Standard motor is Pentair totally‑enclosed fan‑cooled squirrel‑cage motor. Main dimensions comply with IEC and DIN standards.
Mounting form: IMB3 Protection class: IP55 Insulation class: Class F / Temperature rise assessment for Class B Ambient temperature: Max. 40 °C Voltage (50 Hz): 3×220/380 V (2.2 kW and below) 3×380 Δ V (3 kW and above) Liquid temperature: ‑20 ℃ ~ +80 ℃ Thermal protection: Motors of 3 kW and above are fitted with one series‑connected PTC 150 °C sensor per phase for over‑temperature motor protection. Other motor protection options are available upon request.
Maximum: +40 ℃
When ambient temperature exceeds +40 ℃ or installation altitude is above 1000 m, the motor is at risk of overheating and cannot run at full load. Overheating arises from poor motor cooling caused by high ambient temperature or low air density, resulting in derated motor output power. A higher‑rated motor must therefore be selected. Users shall provide information on installation location and pumped‑liquid temperature.

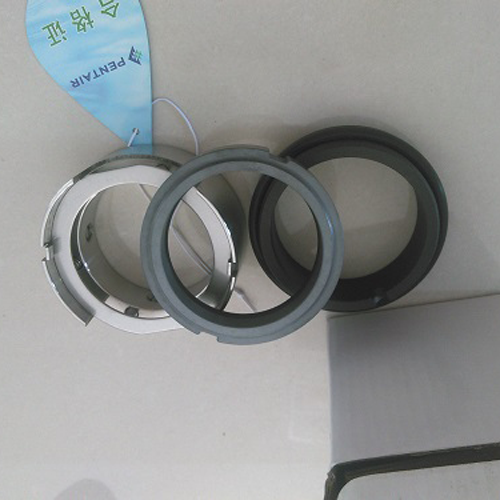

Full‑set mechanical seal
Packing
Full‑set bearings
Gasket between pump casing and pump cover
Impeller
Impeller nut
Elastic washer for impeller nut
Impeller key
Mechanical seal gland
O‑ring for mechanical seal gland
Shaft
Full‑set bearing gland
Coupling elastic pin kit
Complete coupling assembly
